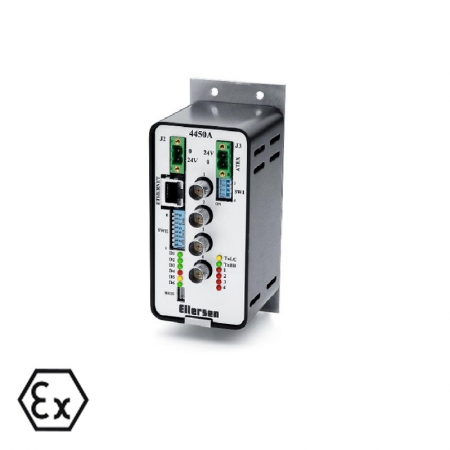

ATEX Modbus TCP/IP Interface 4x50A

ATEX certified (zone 1, 2, 21, 22) Modbus TCP/IP interface module for directly interfacing up to four digital ATEX load cells. The interface module type 4X50A can also be used in non-ATEX installations.



Type: 4X50A

Interface: Modbus TCP/IP



Special features:

  • Modbus TCP/IP fieldbus interface
  • For ATEX and non-ATEX applications
  • Weighing module for up to 4 digital load cells
  • Plug-and-play installation with Eilersen digital load cells
  • Advanced digital filters (configurable)
  • A ”Digital Junction Box” that can be mounted near the load cells or in a central panel
  • Small Form Factor
  • Setup via dip switches
  • For ATEX when supplied by power supply type 4051A
  • The power supply 4051A and module type 4X50A must be installed outside the hazardous zone
  • Application software can be made by request
  • Made in Denmark



Options:

  • OEM version
  • Customized application software
  • Mounted in stainless steel housing
  • Prepared for panel mounting on DIN rail



atex ex   CE
