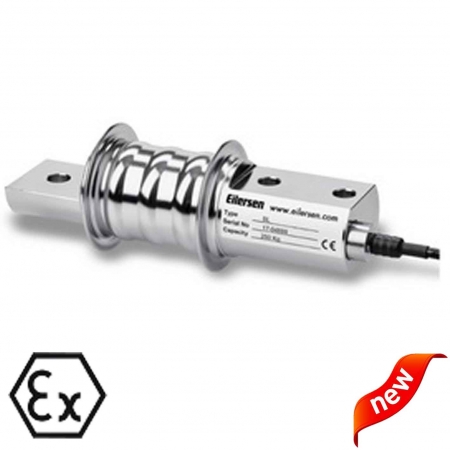

Robust digital beam load cell in a new hygienic (aseptic) design for dynamic weighing, process weighing, filling, packaging and general weighing in primarily FOOD and PHARMA applications. The new hygienic (aseptic) design in stainless steel is without gaps or edges for easy cleaning in order to minimize the risk of bacteria growth. The load cell is ATEX certified for installation in ATEX (Ex) environment but can also be used in non-ATEX (Ex) rated area.
Type: BL (Non-ATEX), BL-Ex (ATEX)
Capacity (Emax): 10, 20, 30, 50,100, 150, 250, 500, 1000 kg
Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload tolerance: 500% at 5 kg, 200% at 1000 kg capacity
Special features:
- New hygienic (aseptic) design without gaps or edges for easy cleaning to minimize the risk of bacteria growth
- High tolerance of up to 1.000% overload
- Made in Denmark
- Robust capacitive technology
- Hermetically sealed to IP68
- Electropolished stainless steel 1.4542 (17-4 PH)
- Laser welded with Stainless Steel 1.4541
- ATEX certified (Zone 1, 2, 21, 22)
- High accuracy, High resolution
- Cable length up to 100meters
- Capacity (Emax): 10, 20, 30, 50, 100, 150, 250, 500, 1000kg
- Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
- Calibration independent of cable length
- Load cell cable replaceable
- Easy mechanical and electrical installation
- Withstands welding voltages and ESD
- Can be used in both ATEX and non-ATEX installations
Applications:
- Process weighing
- Dynamic weighing
- Tanks and vessels
- Vibration sorters
- Filling and dosing
- Platform scales
- Packaging machines
- Hopper scales
- Belt scales
- Conveyor scales
- Big-bag equipment
- On-board weighing
