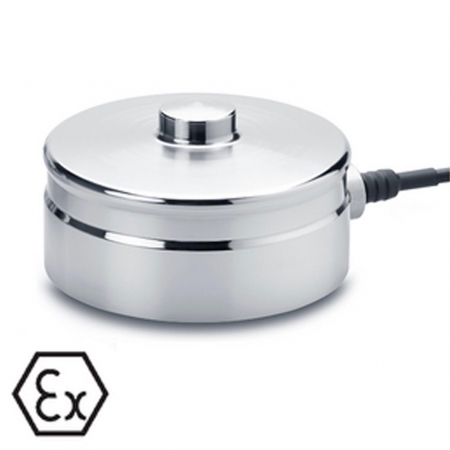

Hygienic compression load cell type CL (CL-Ex) in EHEDG compliant design. The robust digital ATEX certified CL and CL-Ex load cells are produced in stainless steel. They are also hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing. The load cells can be supplied with a hygienic base plate. The CL (CL-Ex) compression load cell can be used in non-ATEX and ATEX (Ex) applications (Zone 1, 2, 21 and 22)
Type: CL (Non-ATEX), CL-Ex (ATEX)
Capacity (Emax): 50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000kg
Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload tolerance: Up to 500% of rated capacity
Special features:
- EHEDG compliant design
- Robust capacitive technology
- Made in Denmark
- High tolerance of up to 500% overload
- Stainless steel
- Hermetically sealed to IP68
- Laser welded
- ATEX version available (Zone 1, 2, 21, 22) version type CL-Ex
- Low profile and hygienic design
- Can be supplied with Mud resistant and Halogen free cables for offshore installation
- High Accuracy, High resolution
- Withstands welding voltages and ESD
- Cable length up to 100meters
- Capacity (Emax): 50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000kg
- Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
- Load cell cable replaceable
- Easy mechanical and electrical installation
- Calibration independent of cable length
- Can be used in both ATEX and non-ATEX installations
Applications:
- Process weighing
- Tank weighing
- Big-bag equipment
- Filling and dosing
- Offshore
- Level measurement
- Platform scales
- Hopper scales
- Heavy duty applications
- Belt scales
