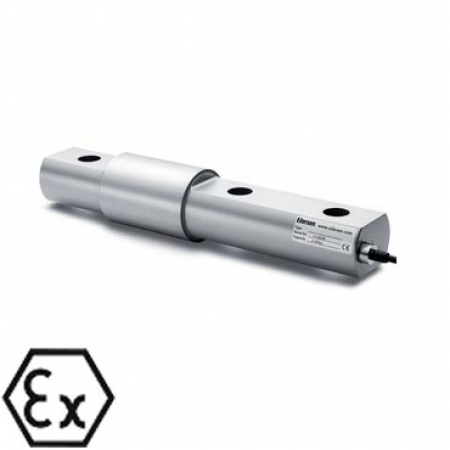

Robust digital heavy duty (ATEX certified) beam load cell produced in stainless steel and hermetically sealed to IP68. For example for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. The BBM(A)70 load cell can be used in ATEX (Ex) and non-ATEX applications.
Type: BBM70 (Non-ATEX), BBM(A)70 (ATEX),
Capacity (Emax): 1000, 2000, 3000 kg
Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload tolerance: Up to 1.000% of rated capacity
Special features:
- BBM(A) is ATEX certified (Zone 1, 2, 21, 22)
- Stainless steel
- Made in Denmark
- Robust capacitive technology
- High tolerance of up to 1.000% overload
- Hermetically sealed to IP68
- High accuracy, High resolution
- Can be supplied with Mud resistant and Halogen free cables for offshore installation
- Digital filters
- Laser welded
- Cable length up to 100meters
- Capacity (Emax): 1000, 2000, 3000kg
- Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
- Calibration independent of cable length
- Load cell cable replaceable
- Easy mechanical and electrical installation
- Withstands welding voltages and ESD
- Can be used in both ATEX and non-ATEX installations
Options:
- ATEX (Zone 1, 2, 21, 22) version type BBMA
- ATEX II 2G Ex ia IIC T6 / ATEX II 2D Ex iaD 21 T85°C
- Mounting kits available
- Customized versions available
- Load cell cable length 10, 20, 50 or 100meters
- Mud resistant and Halogen free cables for offshore installation
- Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
- Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
