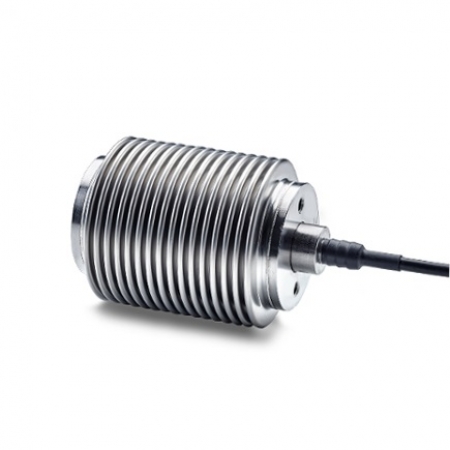

Compact digital beam load cell for dynamic weighing, web tension measurement, process weighing, force measurement and general industrial weighing. This load cell is a short version of the SD beam load cell. It is produced in stainless steel and laser welded (IP68).
Type: SDC
Capacity (Emax): 1, 2, 5, 10, 20, 30, 50, 100 kg
Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload tolerance: 500% at 2kg, 200% at 100kg capacity
Special features:
- Short version of SD load cell
- Stainless steel
- Made in Denmark
- Robust capacitive technology
- Patented high reliability capacitive sensor
- High tolerance of up to 1.000% overload
- Hermetically sealed to IP68
- Laser welded
- High accuracy, High resolution
- Small deflection at rated capacity
- Capacity (Emax): 1, 2, 5, 10, 20, 30, 50, 100kg
- Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
- High resonance frequency (spring rate) for rapid dynamic weighing
- Digital filters
- Cable length up to 100meters
- Calibration independent of cable length
- Easy mechanical and electrical installation
- Withstands welding voltages and ESD
- Load cell cable replaceable
Options:
- Load cell cable length 10, 20, 50 or 100meters
- Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
- Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
