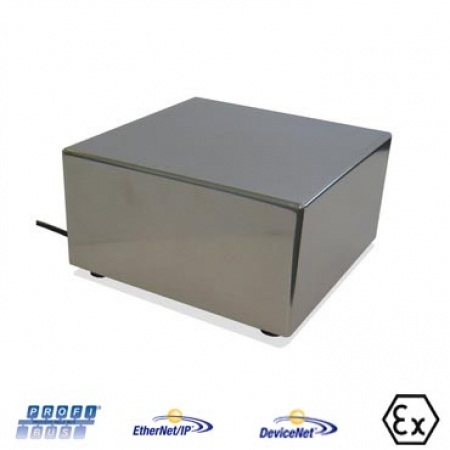

ATEX scales based on Eilersen robust IP68 load cells for installation in ATEX rated area (zone 1, 2, 21, and 22). They are typically used in food, pharma, chemical and offshore applications where reliability is a must.
Type: ATEX Scale
Capacity (Emax): Up to 20000 kg
Overload tolerance: Up to 1000%
Options:
- Specific dimensions, range and materials
- Local indicator and/or direct interface to PC, PLC or SCADA systems
Special features:
- Installation in ATEX zone 1, 2, 21, and 22
- Dimensions, range and materials (e.g. AISI304 or 316, epoxy coating etc.) according to customer specifications
- Made in Denmark
- Robust capacitive technology
- Patented high reliability capacitive sensor (IP68)
- High tolerance of up to 1000% overload
- High accuracy and high resolution
- Digital filters for reducing the influence from vibrations
- Scale calibration is independent of cable length
- Cable length up to 100meters
- A range of software modules for standard weighing, special purposes, and customer specific applications
- The status of each load cell in the scale can be monitored allowing for easy maintenance
- Local indicator and/or direct 4-20mA, 0-10Vdc, RS485, Modbus ASCII/RTU, DeviceNet, EtherNet IP, Profibus DP, EtherCAT, ProfiNet (pending) interface
Click here for examples of ATEX Scales
