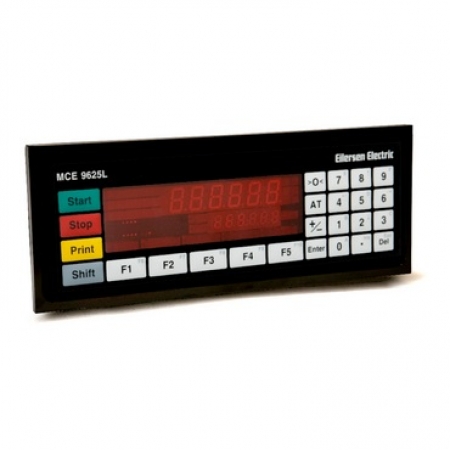

Flexible and fully digital OIML certified weighing terminal type MCE9625L with numeric keyboard and a wide range of software for all standard weighing applications. The MCE9625L weighing terminal feature a digital signal processor and advanced features for displaying and controlling process values and communication with various types of equipment.
Type: MCE9625L
Options:
- OEM version
- Panel mounting
- Customized application software
- Mounted in stainless steel housing
Special features:
- 2 x RS485, 1 x RS485/422, 2 x RS232 serial interfaces
- 3 x 24Vdc inputs and 3 x 24Vdc outputs
- Made in Denmark
- 7-segment LEDs for displaying data and parameters
- 7 x LEDs for signalling: Zero valid, In on/off, Out on/off
- Numeric keyboard with keys for zeroing, tare function, gross/net and entering parameters, set-points etc.
- Function keys for Start/Stop and Print for handling various processes
- Ten function keys for entering and controlling parameters
- Connection to Fieldbus and supervisory (ERP) systems
- Optional extra LEDs for signalling in OEM applications
- Optional I/O extension: 4 x 24Vdc digital inputs and 8 x 24Vdc, 0.1A digital outputs for connection to photo cells, relays, actuators etc.
- Optional Profibus DP, DeviceNet, EtherCAT, and ProfiNet (pending) interfaces
Applications:
- Filling & Dispensing of liquid or bulk material
- Dosing of liquid or bulk material
- Scales
- Flow
- Mixing
- Mobile weighing
- Batching with recipe handling
- Loss-in-Weight
- Customer specific application software
- Force measurement
- Level-by-weight
- Vessel weighing
- Checkweighing
- Belt Scales
Click here for examples of the 9625L Digital LED Weighing Terminal
