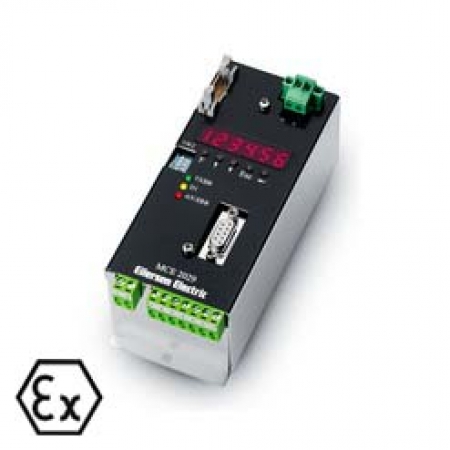

Analog output module. Featuring a small LED display, 4-20mA or 0-10Vdc active output and RS485 interface. The module also features four I/O for level alarms and remote tarering. This module can be used for up to eight digital non-ATEX load cells. The module type MCE2029 can also be used in ATEX applications when connected to an ATEX 4X40A interface module.
Type: MCE2029
Interface: Analog output (4-20mA or 0-10Vdc active output) and RS485 interface
Special features:
- Analog 4-20mA or 0-10Vdc ACTIVE output
- Made in Denmark
- Digital RS485 serial communication
- Six character LED display
- 2 digital inputs + 2 digital outputs
- Can be used for up to 8 digital load cells
- Shows the weight on each of the load cells
- Shows the summed weight for all the load cells
- Configurable measuring time (40 ms -> 4 seconds)
- 16bit D/A converter
- 3 different FIR filters selectable by dip switches
- Plug-and-play installation with pre-calibrated digital load cells
- Input for zero and tare
- Application software can be made by request
- Setup via keys and dip switches
Options:
- Prepared for panel mounting on DIN rail
- Mounted in stainless steel housing
- Customized application software
- OEM version
