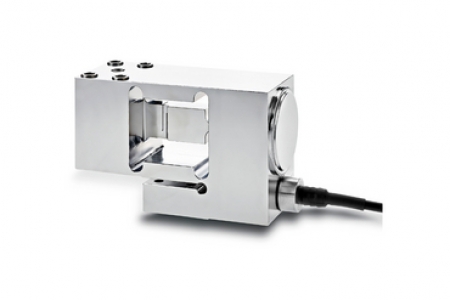

Single Point Load Cell-SPSX

The robust digital single point load cell type SPSX in stainless steel is hermetically sealed to IP69K. The main applications are graders, multihead weighers, checkweighers, filling machines, belt scales, platform scales, bench scales etc. ATEX (Ex) approved versions are available.



Type: SP SX

Capacity (Emax): 5, 10, 20, 50, 100, 150kg

Accuracy: Industrial 0.025%, Precision 0.015%, High Precision 0.010%

Overload tolerance: Up to 1000% of rated capacity



Special features:

  • Stainless steel
  • Made in Denmark
  • Robust capacitive technology
  • High tolerance of up to 1.000% overload
  • ATEX version available (Zone 1, 2, 21, 22)
  • High accuracy, High resolution
  • Platform size up to 400 x 400mm
  • Hermetically sealed to IP68
  • Can be supplied with Mud resistant and
  • Laser welded
  • Halogen free cables for offshore installation
  • Capacity (Emax): 5, 10, 15, 20, 30, 50, 100, 150, 200kg
  • Accuracy: Industrial 0.025% Precision 0.015% High Precision 0.010%
  • Small deflection at rated capacity
  • High resonance frequency (spring rate) for rapid dynamic weighing
  • Easy mechanical and electrical installation
  • Load cell cable replaceable
  • Digital filters

Options:

  • ATEX (Zone 1, 2, 21, 22) version type SP5075A
  • ATEX II 2G Ex ia IIC T6 / ATEX II 2D Ex iaD 21 T85°C
  • Customized versions available
  • Load cell cable length 10, 20, 50 or 100meters
  • Mud resistant and Halogen free cables for offshore installation
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)

Click here for examples of SPSX Single Point Load Cells
