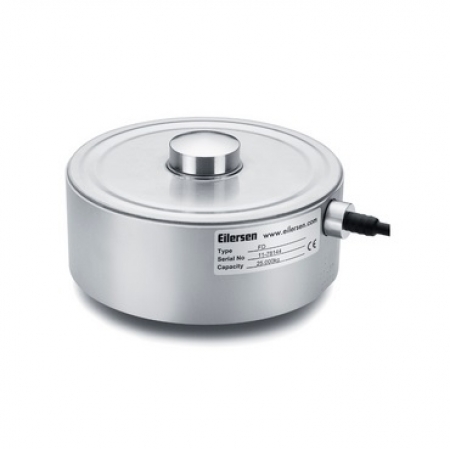

Robust digital compression load cell produced in stainless steel and hermetically sealed to IP68. For example for hygienic weighing installations, installations in tough environments and general process weighing.
Type: FD
Capacity (Emax): 6000, 8000, 10000, 15000, 20000, 25000, 50000 kg
Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload tolerance: 400% at 6 tons, 200% at 50 tons capacity
Special features:
- Robust capacitive technology
- Made in Denmark
- Stainless steel
- High tolerance of up to 400% overload
- Hermetically sealed to IP68
- Laser welded
- Hygienic design and installation
- Withstands welding voltages and ESD
- Capacity (Emax): 6000, 8000, 10000, 12000, 15000, 20000, 25000, 50000kg
- Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
- Cable length up to 100meters
- Load cell cable replaceable
- Easy mechanical and electrical installation
- Calibration independent of cable length
Options:
- Load cell cable length 10, 20, 50 or 100meters
- Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
- Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)

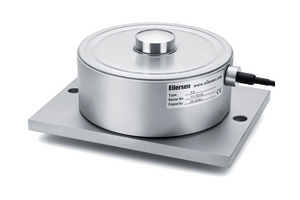

- Base plate available

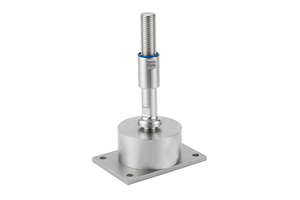

- Alfa Laval tank leg available for Eilersen load cells
Click here for examples of FD Digital Compression Load Cells
