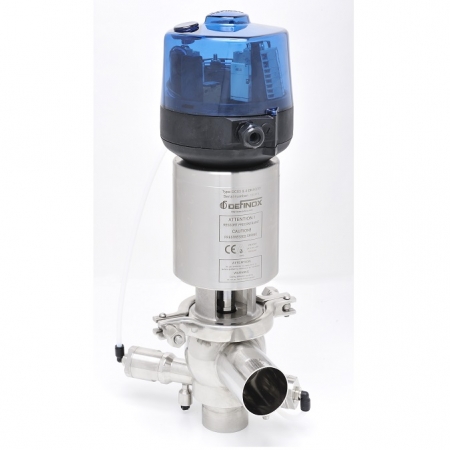

Aseptic bearing ch.over valve DCX3

Features

• Same features as standard DCX3 (floating seal, thick body, etc.)
• Fitted with an aseptic guide bearing which steam or fluid (washing - rinsing) circulates through to clean the parts of the plug, which come into contact with the outside environment ont the valve outstroke. When the valve closes, the steam in contact with the outside environment is sterilized before penetrating the valve body.

Option

• Cooling bearing

Service conditions

• Max. temperature: +140^oC/+284^oF (temperature depending on seal type)
• Min. temperature: -5^oC/+23^oF
• Max. working pressure: 8 bar (800 kPa)/116 psi
• Actuator air supply pressure: min. 5.5 bar (550 kPa) /80 psi; max. 8 bar (800 kPa)/116 psi
• Vacuum resistance: 0.4 cm³/s
