Delta P - Hygenic Process Equipment

C Header afsluiters 28 01 Definox

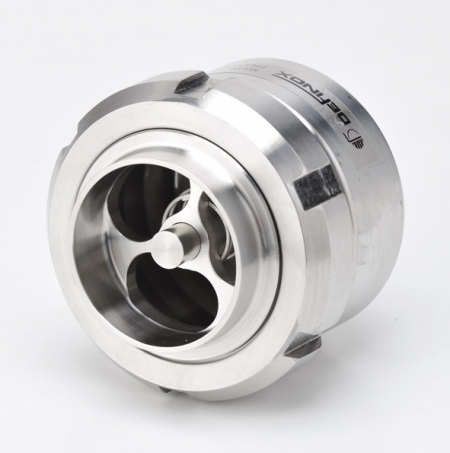

Miscellaneous non-return valve

Miscellaneous non-return valve

Technische gegevens

  • Dimensions: SMS - DIN - US: From DN1/2" to DN125 (5")
  • Non-return valve with full bore
  • Quick disassembly using a SMS type nut

Materials

  • Body - plug - spring: stainless steel 1.4404 / 316L
  • Plug seal: PFA
  • Seal: fluorinated elastomer (FKM) - EPDM - PFA

Service conditions

  • Max. temperature: +120oC/+248oF
  • Min. temperature: 0oC/+32oF
  • Max. working pressure: 10 bar (1000 kPa)/145 psi
  • Counterpressure: 90 mbar

Connection types / Standards

  • Welded / SMS - DIN - US standard
  • Threaded / SMS - DIN
  • Liner-nut / SMS - DIN
  • Clamp / US standard

Option

  • Metal/metal tightness (requiring pairing)
