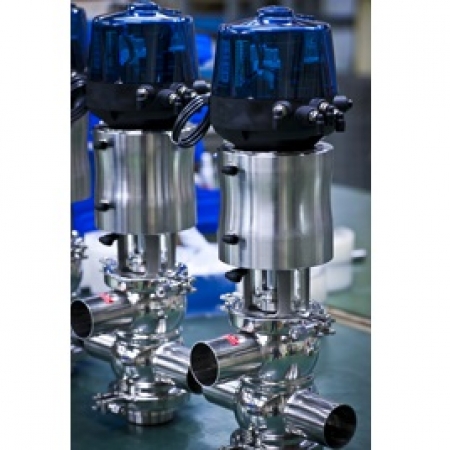

Mixproof valve VDCI MC PFA

Mixproof valve VDCI MC PFA

Technische gegevens

  • Dimensions: SMS - DIN - US: From DN38 (1" 1/2) to DN125 (5")
  • Signalling equipment: Visible on single or double stainless steel bracket. Point-to-point or AS-i control unit. ACS (from DN25 to DN125). Option: lantern detector for breakaway of the upper plug
  • Surface conditions: RA exterior = 1.2 µm (150 grit); RA interior = 0.8 µm (180 grit).

Features

  • Standard solid machined compact actuator for all versions
  • Reduced disassembly and assembly times for the actuator
  • Plugs can be removed from the lantern making maintenance much easier
  • Volume machined body with a new profile guaranteeing excellent resistance against mechanical and thermal damage
  • Counter Balance offering good resistance against pressure hammer
  • Improved cleaning of the leakage chamber thanks to the internal plug wich has floating seals for easy cleaning and are extremely resistant to chemical attack
  • Leak indicator showing any fault in the sealing point between the plugs
  • High level of modularity for all options and versions
  • Option to accurately detect the movement of each independent plug with the new generation ACS control unit

Materials

  • Body:  stainless steel 1.4404 / 316L
  • Shut-off unit: stainless steel 1.4404 / 316L
  • Plug seal: PFA
  • Bodyseal: EPDM, fluorinated elastomer (FKM)
  • Actuator: stainless steel 1.4301 / 304

Service conditions

  • Operating temperature: -5oC to +130oC/+23oF to 266oF
  • Sterilisation temperature: +140oC/+284oF
  • Max. working pressure: 9 bar (900 kPa)/131 psi, except during the cleaning, 7 bar (700 kPa)/102 psi
  • Actuator air supply pressure: 5.5 to 7 bar (500 to 700 kPa)/80 to 102 psi with the ACS unit, up to 8 bar (800 kPa)/116 psi with direct supply

Connection types / Standards

  • Welded / SMS - DIN - US standard
  • Threaded / SMS - DIN
  • Liner-nut / SMS - DIN
  • Clamp / US standard

Option

  • Sterilisation of the stem and counter balancer by the upper and lower bearings
