Tank bot. mixpr. valve VDCI MC FdC

Tank bot. mixpr. valve VDCI MC FdC

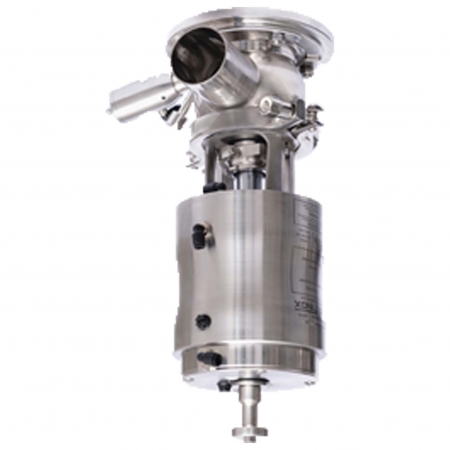

The VDCI MC tank bottom leak chamber valve is intended to cut off the tank from the rest of the process circuit.



Features

  • Isolates the tank from the rest of the process circuit
  • Body and plug shape provide the tightest seal to the tank wall, without retention area
  • Same features as VDCI MC (floating seal, thick body, etc.)
  • Leakage chamber washed by pulsing the lower plug
  • The leak can be viewed thanks to a controlled microvalve
  • Leak free opening

Materials

  • Body: stainless steel 1.4404 / 316L
  • Shut-off unit: stainless steel 1.4404 / 316L
  • Plug seal: PFA
  • Other seals: EPDM, fluorinated elastomer (FKM)
  • Actuator: stainless steel 1.4301 / 304

Service conditions

  • Max. temperature: +140oC/+284oF
  • Temperature differential between the upper line and the lower line: max. +90oC/+194oF
  • Min. temperature: -5oC/+23oF
  • Max. working pressure permissible in the tank: 4 bar (400 kPa)/58 psi
  • Max. working pressure in the valve: 7 bar (700 kPa)/102 psi
  • Actuator air supply pressure: 5.5 bar to 7 bars (500 to 700 kPa)/80 to 102 psi with ACS control top. Up to 8 bars (800 kPa)/116 psi with direct supply, according to the conditions of operating
  • Vacuum resistance: 0.4 cm3/s

Connections

  • On tank, with special welded flange

Options

  • Steam bearing stem
  • Second microvalve to clean the leakage chamber without activating the plugs
