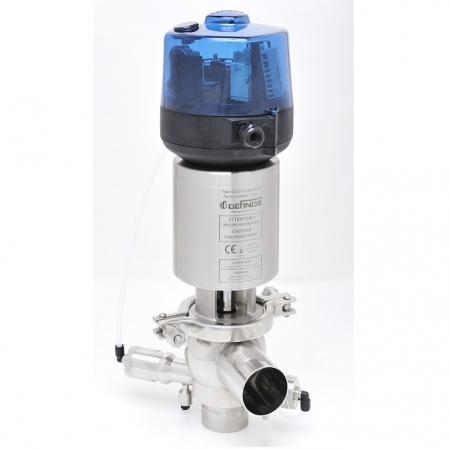

Regulating valve DCX3

Regulating valve DCX3

Technische gegevens

  • Dimensions: SMS - DIN - US; from DN25 (1") to DN100 (4").
  • Signalling equipment: (0)4/20 mA or 0/10 V positioner
  • Surface conditions: RA exterior = 1.2 µm (150 grit); RA interior = 0.8 µm (180 grit)

Features

  • Fitted with a positioner enabling the flow, pressure or level to be regulated on all supply fluids using a signal (0)4/20 mA or 0/10 V
  • Profiled plug (without sealing)

Materials

  • Body: stainless steel 1.4404 / 316 L
  • Shut-off unit: stainless steel 1.4404 / 316 L
  • Valve seal: EPDM; fluorinated elastomer (FKM) or silicon
  • Operating devices: stainless steel 1.4301 / 304

Service conditions

  • Max. temperature: +140oC/+284oF (temperature depending on seal type)
  • Min. temperature: -5oC/+23oF
  • Max. working pressure: 8 bar (800 kPa)/116 psi with elastomer seal
  • Actuator air supply pressure: min. 5.5 bar (550 kPa) /80 psi; max. 8 bar (800 kPa)/116 psi
  • Vacuum resistance: 0.7 cm3/s

 Connection types / Standards

  • To weld - SMS, DIN, US standard
  • Threaded - SMS, DIN
  • Liner-nut - SMS, DIN
  • Clamp - US standard

Option

  • Elastomer seal for absolute tightness
