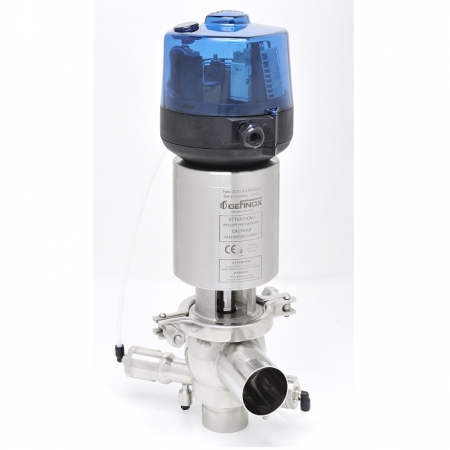

Features
- Same features as standard DCX3 (floating seal, thick body, etc.)
- Fitted: with PTFE (PolyTetraFluorEthylene) diaphragm to ensure a physical barrier between the inside of the valve and the outside environment, and with microvalve to warn of a leak or possible seal damage
- The stroke on these valves is slightly shorter than on a standard DCX valve
Service conditions
- Max. temperature: +140oC/+284oF (temperature depending on seal type)
- Min. temperature: +1oC/+33,8oF
- Max. working pressure: 8 bar (800 kPa)/116 psi
- Actuator air supply pressure: min. 5.5 bar (550 kPa) /80 psi; max. 8 bar (800 kPa)/116 psi
- Vacuum resistance: 0.4 cm3/s
